Scale: 1/96     (1/8 inch = 1 foot)

Includes 1 mount (turret), trunnion and barrel.

This multi-part model kit represents the 5 inch 54 caliber Mark 42 Mount installed aboard many US Navy and allied warships.  To assemble the model, insert the cannon, barrel first, through the open bottom into the gun slot


  • overall dimensions from official US Navy drawings
  • separate cannon and trunnion to allow the modeler to set the barrel at any realistic elevation from +85 deg. to -15 deg. just like the real mount.
  • detailed "frog-eye" local fire control dome
  • properly scaled hatches with hinge details
  • access plates with hex-head bolt details

© Model Monkey Book and Hobby.  This 3D-printed item may not be copied or recast.


    From Wikipedia: "The Mark 42 5"/54 caliber gun (127mm) is a naval gun (naval artillery) mount used by the United States Navy and other countries. It consisted of the Mark 18 gun and Mark 42 gun mount. United States naval gun terminology indicates the gun fires a projectile 5 inches (127.0 mm) in diameter, and the barrel is 54 calibers long (barrel length is 5" × 54 = 270" or 6.9 meters.)[1] In the 1950s a gun with more range and a faster rate of fire than the 5"/38 caliber gun used in World War II was needed. Because of this reason, the gun was created concurrently with the 3"/70 Mark 26 gun for different usages. The 5"/54 Mk 42 is an automatic, dual-purpose (air / surface target) gun mount. It is usually controlled remotely from the Mk 68 Gun Fire Control System, or locally from the mount at the One Man Control (OMC) station.[2]

    United States
    United States Navy

    • Knox-class frigate


    Egyptian Navy

    • Damiyat class frigate (ex-USN Knox class frigates)


    Hellenic Navy

    • Ipiros class frigate (ex-USN Knox class frigates)


    Mexican Navy

    • Ignacio Allende class frigate (ex-USN Knox class frigates)

    Spanish Navy

    • Baleares-class frigate (modified Knox class)

    Republic of China Navy

    • Chih Yang class frigate (modified ex-USN Knox class)

    Royal Thai Navy

    • Phutthayotfa Chulalok-class frigate (ex-USN Knox class frigates)

    Turkish Navy

    • Muavenet class frigate (ex-USN Knox class frigates)"

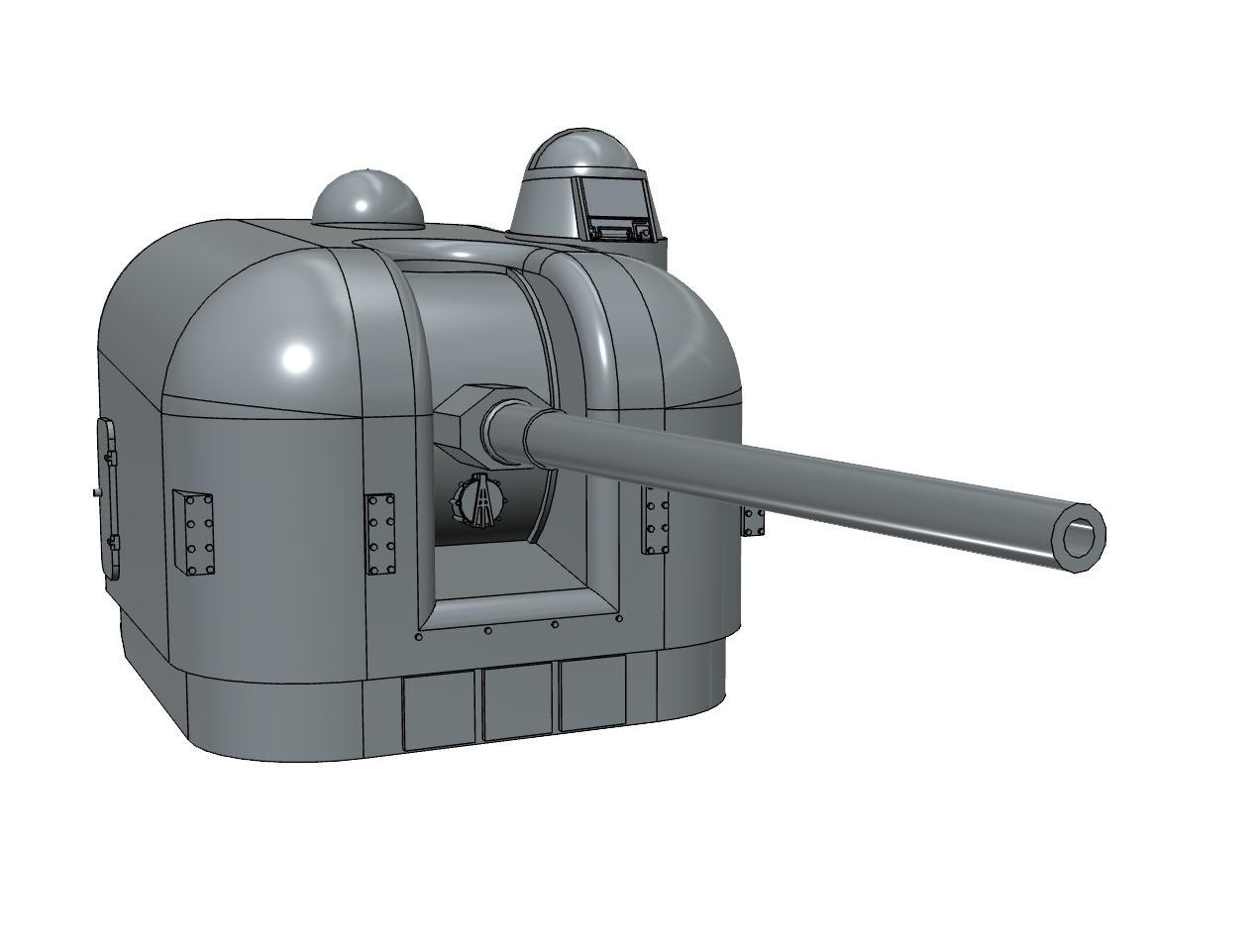

    1/100 5"/54 cal. Mk.42 "Frog-eye" Mount for Fast Frigates

    SKU: 100-5in54-FrogEye-Knox-1

      Except for new nameplates, we do not accept requests for new models or alterations to existing models.
