Scale: 1/144

Recommended for:

  • Revell 1/144 scale "Fletcher Class Destroyer"
  • Revell 1/144 scale "Fletcher Class Destroyer, Platinum Edition"
  • Revell 1/144 scale "German Destroyer Class 119 (Z1/Z5)"
  • Strike Models 1/144 scale USS Arizona BB-39 finished as a late-war USS Pennsylvania BB-38
  • Strike Models 1/144 scale USS Iowa BB-61
  • Strike Models 1/144 scale USS Montana BB-67
  • Strike Models 1/144 scale USS Alaska CB-1

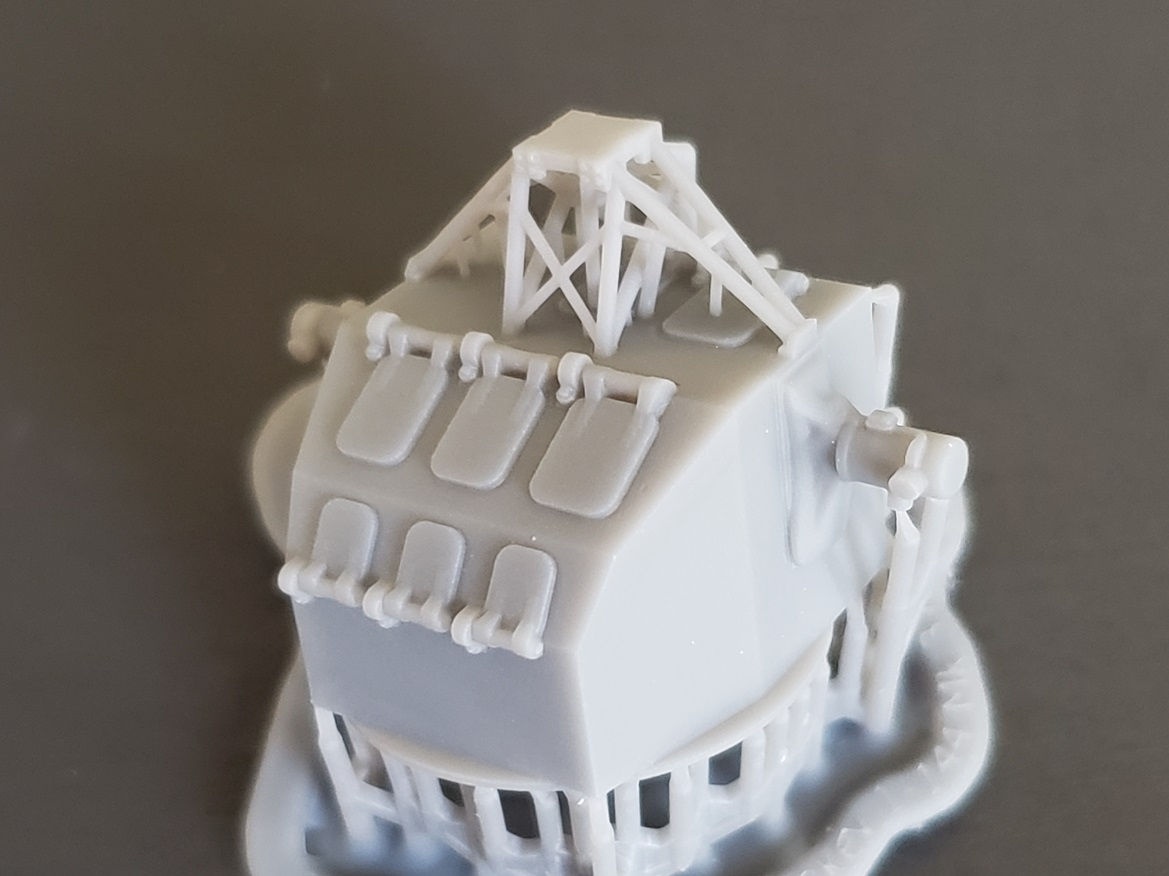

This model represents the US Navy's Mark 37 "square-back" Fire Control Director as configured to carry Mk.12/Mk.22 radar antennas.  This director featured two small boxy extensions on the rear of the director to accommodate radar equipment.



The US Navy Mark 37 Director was used to control the fire of the 5”/38 caliber dual purpose batteries against both aircraft and surface targets, to direct the fire of starshells for the illumination of surface targets and to position the searchlights.  This early "Square-back" Mk.37 director featured five observation hatches and three telescope port covers.   Many of these Mk.37 directors were modified to a later configuration (available separately) that had a shielded position for the director captain.

These 3D-printed acrylic parts are designed to accurately represent features of the actual ship based on official Navy blueprints.  These are not 3D-printed copies of Revell's plastic kit's parts and therefore are not the same size and shape.  Some adjustment to your plastic kit's parts or other aftermarket parts such as photoetch may be necessary for best fit.  CA "super glue" will bond this acrylic part to your polystyrene plastic kit.


© Model Monkey Book and Hobby.  This 3D-printed item may not be copied or recast.



Mk.37 directors were commonly installed on many classes of US Navy and US Coast Guard ships during World War II through the Cold War. Here is a short summary of Mk.37 directors from noted naval historian and researcher Rick E. Davis:



Mk.37 "Angle-Back" director (available separately): the early Mod versions, called "taper-back" or "angle-back", were installed on the NORTH CAROLINA class battleships, SOUTH DAKOTA class battleships, USS Iowa BB-61, USS New Jersey BB-62, USS Saratoga CV-3 (from 1943), USS Hornet CV-8, SIMS-BENSON-GLEAVES class destroyers, and early completed cruisers and battleships like the first four ATLANTA class light cruisers. It appears in about 1941 the US Navy switched to the “square-back” Mk 37 directors for all ships being built (and modified), and continued to be made throughout WWII.



Mk.37 "Square-Back" director for Mk 4 radar: the first "square-back" version seen had a plain backside with only hand grip rails (this is the director top that comes with the Tamiya and Trumpeter FLETCHER class kits). Some FLETCHER’s ended the war still equipped with the Mk 4 radar. Units with Mk 4 radar that were recommissioned for the Korean War never had the Mk 12/22 radars installed, having the newer Mk 25 radar installed.



Mk.37 "Square-Back" director for Mk 12/22 radar (this model): these are the same directors as above with two extension boxes added to the back to house the electronics of the new radars. As an aside, the Mk 12 radar was available and installed without the Mk 22 radar on a few destroyers in mid-1944. Most of those destroyers had the Mk 22 installed before going to the war zone however during post-shakedown availabilities.



Mk.37 "Square-Back" director for Mk 12/22 radar, with commander's cockpit (available separately): the commander's cockpit was added as a mod to existing and new directors starting in early 1945.  Several of the Anti-Kamikaze Mod FLETCHER’s got the cockpit.  But, oddly, not all destroyers got the cockpits.  Reports indicate that many gun director Captains didn’t like it (too hot in the South Pacific).  It is believed that the cockpit-equipped directors are more common on the GEARING class.



Mk.37 director, Cold War-configuration (available separately): during the Cold War, the directors were enlarged to the front, receiving a very boxy-shaped housing.  These were commonly fit to the Iowa class battleships and Essex and Midway class aircraft carriers from the 1950s onward.



Mk.37 Directors are known to have been carried by the following ships and classes but check your sources to know for sure which director type you need for your project:

  • USS Enterprise CV-6, late-war
  • USS Hornet CV-8
  • USS Pennsylvania (rebuilt)
  • USS Maryland (rebuilt)
  • USS Nevada (rebuilt)
  • USS California (rebuilt)
  • USS Tennessee (rebuilt)
  • USS West Virginia (rebuilt)
  • HMS Vanguard
  • Alaska class
  • Atlanta class
  • Baltimore class
  • Benson class
  • Buckley class
  • Butler class
  • Cleveland class
  • Essex class
  • Fletcher class
  • Garcia class
  • Gearing class
  • Gleaves class
  • Iowa class
  • Midway class
  • Montana class
  • North Carolina class had "angle-backs" available separately
  • Sims class
  • South Dakota class
  • Sumner class
  • many others as well as various auxiliaries

1/144 Mk.37 Fire Control Director, "Square-back" for Mk.12/22 Radars

SKU: 144-Mk37-early
$8.00Price
