Scale: 1/350

Set includes 10 mounts (turrets) - 6 "double knuckle" mounts, 2 "double knuckle" mounts with upper rear facet, and 2 "single knuckle" mounts with upper rear facet.  Barrels not included.

Recommended to help build the New Mexico class battleship USS Idaho BB-42 from:
Iron Shipwrights 1/350 scale USS New Mexico BB-40  (1944)
and others!

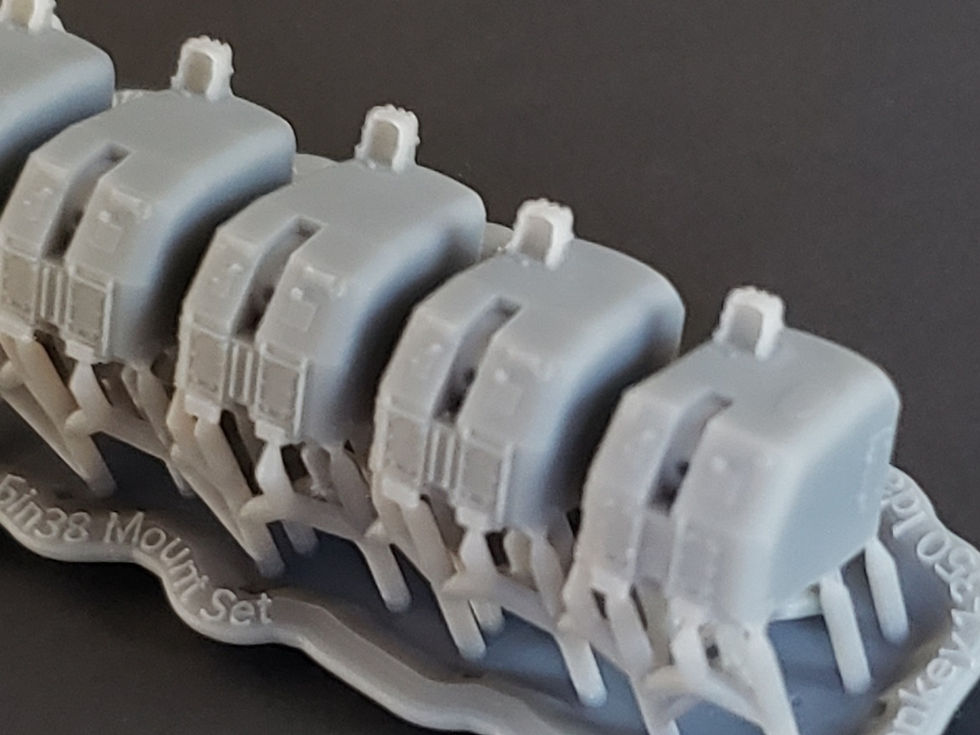

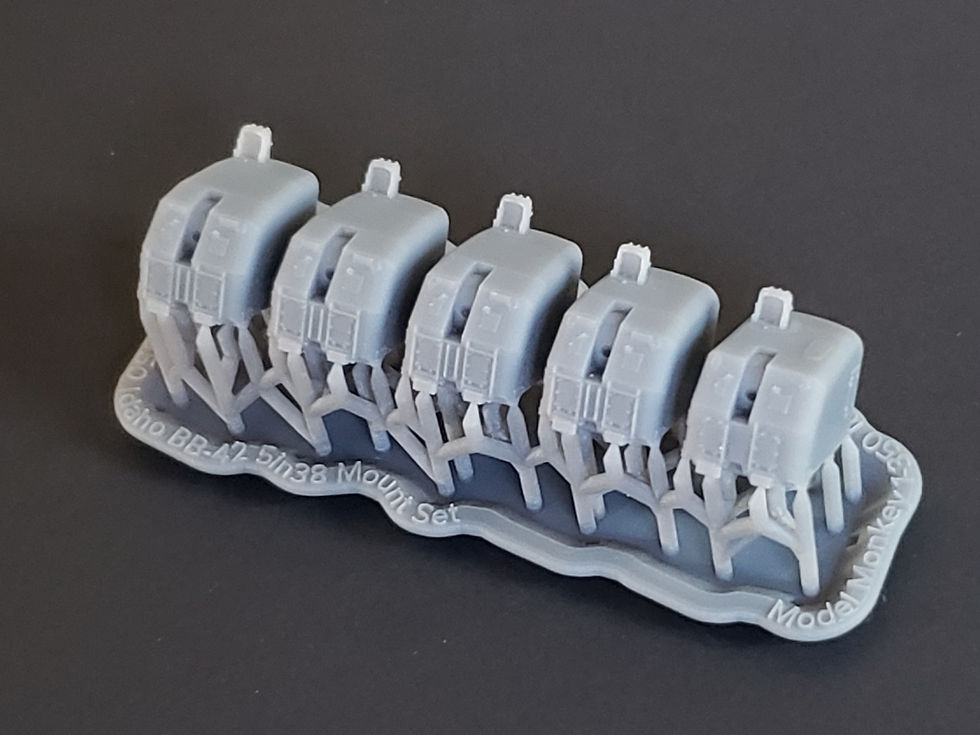

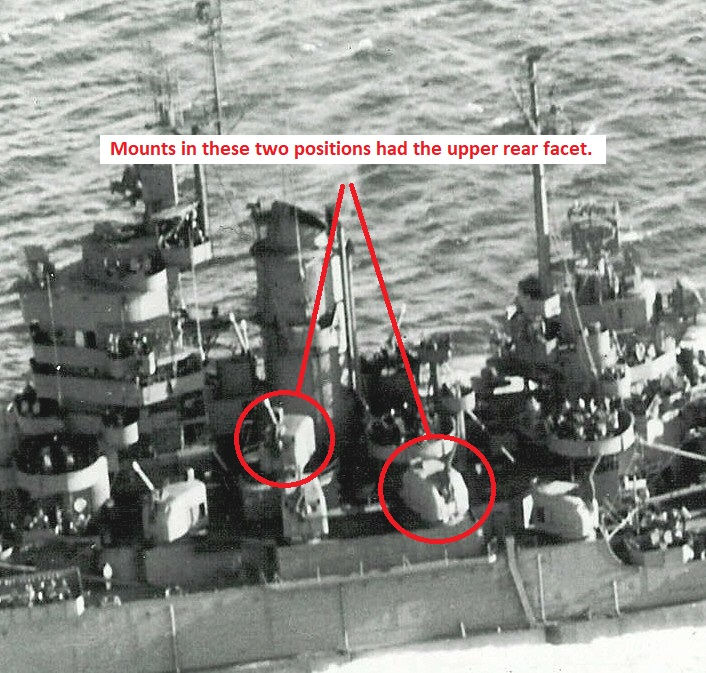

This set of models represents the ten 5"/38 cal. enclosed single-gun mounts fit to the battleship USS Idaho BB-42 in 1944.  Idaho received a mixed set of mounts.  Six of the ten mounts were typical "double-knuckle" 5"/38 cal. Mk. 30 mounts with reinforced roofs.  The other four mounts were conspicuously different.  Those four mounts had the upper rear facet, a bevelled top rear edge, similar to those of Rudderow class and John C. Butler class destroyer escorts.  Two of the four faceted mounts were reinforced "double knuckle" mounts, and the other two were "single knuckle" mounts.  This set contains the correct mix of different mounts.  Please view the photos and plan of USS Idaho in the carousel to see where to place each type of mount.

These 3D-printed acrylic parts are designed to accurately represent features of the real mounts based on official US Navy drawings and photos.  These mounts are not 3D-printed copies of any plastic or resin kit's parts and therefore may be shaped and sized differently than those parts.  Some adjustment to your plastic or resin kit's parts or other aftermarket parts such as photoetch or wood decks may be necessary for best fit.

Features of each mount:
fully assembled
scaled from official US Navy Ordnance Pamphlet 1112 drawings dated January, 1945
accurately shaped, asymmetric gunhouses (turret)
slot for 5"/38 cal. gun set at the loading angle of +5 degrees
accurately offset gun opening
accurate glacis (forward face) stiffener detail
access hatches and viewports with hinge, clasp ("dog") and bolt detail
rooftop gun captain's blast hood
detailed turret bottom supporting structure with accurately placed bolt-head detail
rear vent and offset shell ejection chute

© Model Monkey LLC.  This 3D-printed product may not be copied or recast.
