Scale: 1/350


Recommended for the Trumpeter 1/350 scale USS Saratoga CV-3.

This model represents the funnel of celebrated aircraft carrier USS Saratoga CV-3 as it appeared from her commissioning in 1928 through 1940.  It has features unique to Saratoga, different than those of Lexington during this period.


Features:

  • fully assembled
  • accurately dimensioned from US Navy Booklet of General Plans drawings
  • accurate elliptical shape, not slab-sided a some plastic kits are, and the 01 level is wider aft
  • detail shapes and locations confirmed by careful study of photographs of the actual ship
  • open smoke pipes, accurately sized and properly sloped and compartmented, passing all the way through
  • properly sized and accurately shaped secondary conning station/aviation control station with open windows
  • open drying room vents just below the funnel cap
  • funnel cap roof has the correct complex curve - plastic kit manufacturers get this shape wrong
  • funnel cap roof access hatches (three)
  • access hatches on the roof of the fresh water tank (the boxy structure on the 01 level forward of the stack)
  • starboard side searchlight platforms positioned at the correct height for Saratoga (Lexington's were higher)
  • gently curved port and starboard side catwalks with delicate supporting structure (unlike Lexington, which has only the starboard side catwalk)
  • accurate aft 8" fire control station "fighting top" on the funnel with open windows
  • detailed, internal, twin 8" Mount #3 barbette and associated bulkheads with open scuttles which will be visible through:
  • open A/T doors, ready for your favorite photoetch
  • open portholes (airports) properly sized and located
  • delicate exterior electrical cabling, properly positioned and routed
  • heavy structural supports included
  • light structural supports, railings and ladders omitted, ready for your favorite photoetch


© Model Monkey Book and Hobby.  This 3D-printed item may not be copied or recast.



Model Monkey Lexington class products:
USS Lexington CV-2​

  • USS Lexington Island 1936-1940
  • USS Lexington Island 1942 (Battle of the Coral Sea)
  • USS Lexington Funnel 1928-1935
  • USS Lexington Funnel 1936-1940
  • USS Lexington Funnel 1941
  • USS Lexington Funnel 1942 (Battle of the Coral Sea)
  • USS Lexington 1942 Alternative Splinter Shields (Round-ended – Battle of the Coral Sea)
  • USS Lexington and USS Saratoga 8"/55 Turrets 1928-1941
  • USS Lexington and USS Saratoga rudder
  • Anchors for USS Lexington CV-2 and USS Saratoga CV-3 (set of 3)

USS Saratoga CV-3

  • USS Saratoga Island 1931-1932
  • USS Saratoga Island 1933-1935
  • USS Saratoga Island 1936-1940
  • USS Saratoga Island 1941 (flight deck widened forward and lengthened aft)
  • USS Saratoga Island 1942 (Battles of the Eastern Solomons and Guadalcanal)
  • USS Saratoga Island 1943 (Raids on Bouganville, Rabaul, and the Gilbert and Marshall Islands Campaign)
  • USS Saratoga Island 1944-1945 (Battle for Okinawa)
  • USS Saratoga Funnel 1928-1940
  • USS Saratoga Funnel 1941-1942
  • USS Saratoga Funnel 1942-1943
  • USS Saratoga Funnel 1944-1945
  • USS Lexington and USS Saratoga 8"/55 Turrets 1928-1941
  • USS Lexington and USS Saratoga rudder
  • USS 5"/38 Mk.32 Twin Mounts (turrets) - for Saratoga 1942-1946
  • Anchors for USS Lexington CV-2 and USS Saratoga CV-3 (set of 3)

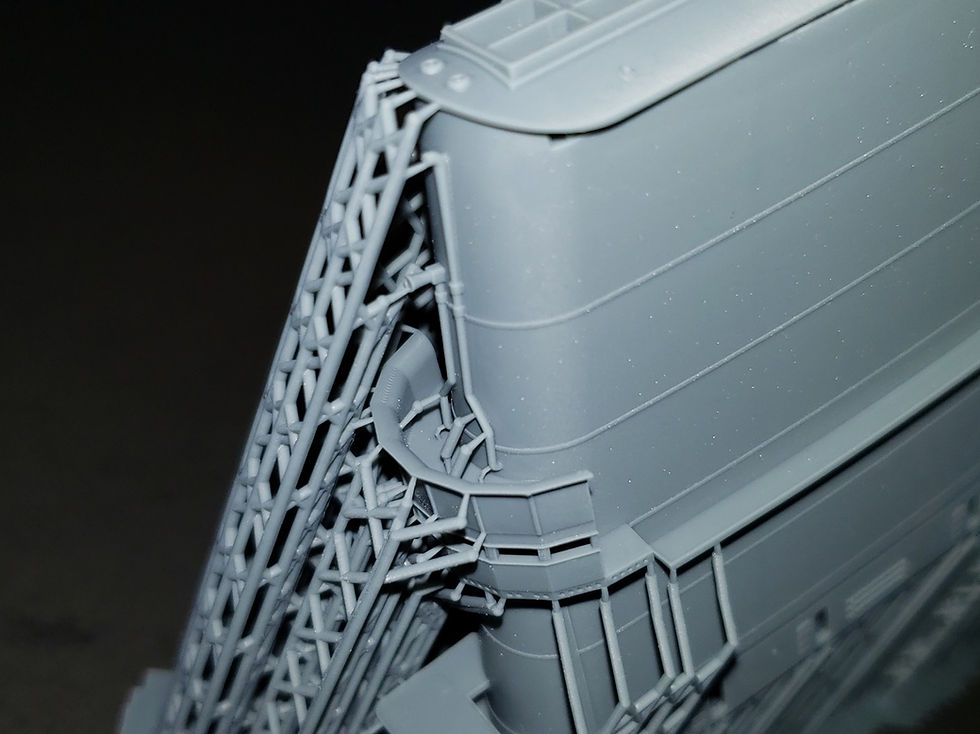

1/350 USS Saratoga CV-3 Funnel, 1928-1940
