Scale: Revell boxart states the kits' scale to be 1/490.  When compared to Navy plans, the models' true scale is close to 1/483.  These mounts are perfectly matched to your Revell kit.


Recommended for:

  • Revell 1/490 scale USS Pittsburgh CA-72 (1967 release)
  • Revell 1/490 scale USS Pittsburgh CA-72 (1971 release)
  • Revell 1/490 scale USS Los Angeles CA-135


The US Navy Mark 37 Director was used to control the fire of the 5”/38 caliber dual purpose batteries against both aircraft and surface targets, to direct the fire of starshells for the illumination of surface targets and to position the searchlights.  This Mk.37 director configuration appeared on ships built early-mid World War Two, up through 1944.

© Model Monkey Book and Hobby.  This 3D-printed item may not be copied or recast.

Mk.37 directors were commonly installed on many classes of US Navy and US Coast Guard ships during World War II through the Cold War.

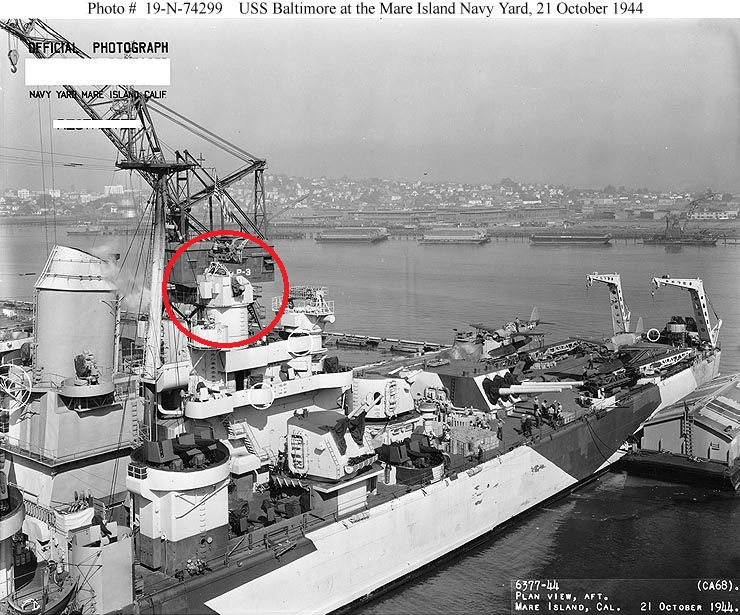

This "square-back" Mk.37 director featured five observation hatches and three telescope port covers and had boxy extensions on the rear shield that enclosed equipment associated with the Mk.12 and Mk.22 radars.   Succeeding the earlier "angle-back" Mk.37 directors, many of these "square-back" Mk.37 directors were modified to a later "square-back" configuration that had a shielded position for the director captain.  During the Cold War, the directors were enlarged, receiving a very boxy-shaped housing.

Mk.37 Directors are known to have been carried by the following ships and classes but check your sources to know for sure which director type you need for your project:

  • USS Enterprise (CV-6)
  • USS Pennsylvania (rebuilt)
  • USS Maryland (rebuilt)
  • USS Nevada (rebuilt)
  • USS California (rebuilt)
  • USS Tennessee (rebuilt)
  • USS West Virginia (rebuilt)
  • Alaska class
  • Atlanta class
  • Baltimore class
  • Benson class
  • Buckley class
  • Butler class
  • Cleveland class
  • Essex class
  • Fletcher class
  • Garcia class
  • Gearing class
  • Gleaves class
  • Iowa class
  • Montana class
  • North Carolina class had "angle-backs" available separately
  • Sims class
  • South Dakota class
  • Sumner class
  • many others as well as various auxiliaries

1/490 Mk.37 Fire Control Directors, "Square-back" for Mk.12 and Mk.22 Radars

SKU: 490-Mk37-Mk12/22-4
