Scale: 1/530


Recommended to help build a late 1950s USS Yorktown CV-10 model from:

  • Renwal 1/500 scale USS Shangri-La CVA-38
  • Renwal 1/500 scale USS Ticonderoga CVA-14

This model represents the modernized SCB-125 island of Essex class aircraft carrier USS Yorktown CVS-10 as it appeared circa 1956-1960 immediately after her conversion to an angled flight deck carrier.  It is intended as a more accurate, direct replacement for the kit parts found in any classic Renwal Essex class carrier model.  USS Yorktown is preserved as a museum ship at Patriots Point, South Carolina, near Charleston. During 1956, she was embarked with Air Task Group 4.  During 1957, Carrier Air Group 19 (CVW-19) was embarked aboard ship.  From 1958-1960, she carried various anti-submarine warfare squadrons.

This 1/530 scale design is too large for the 1/530 scale Revell Essex class carrier model kits and will not fit them properly.  A island precisely scaled to fit Revell kits is available separately.


  • open bridge and PriFly windows with delicate framing
  • decks properly offset to port - plastic kit's decks should NOT be centered on the island
  • properly positioned deck features
  • accurately shaped decks, catwalks and splinter shields for Yorktown
  • deck supporting structure details accurately positioned as confirmed by photos of the real ship
  • delicate exterior piping detail correct for Yorktown
  • porthole rigols ("eyebrows")
  • correct style A/T doors for Yorktown, most in the open position
  • door overhead rain deflectors
  • correct number and position of PriFly splinter shield ribs
  • open funnel cap (grille not included), ready for your favorite photoetch set

© Model Monkey LLC. This 3D-printed product may not be copied or recast.

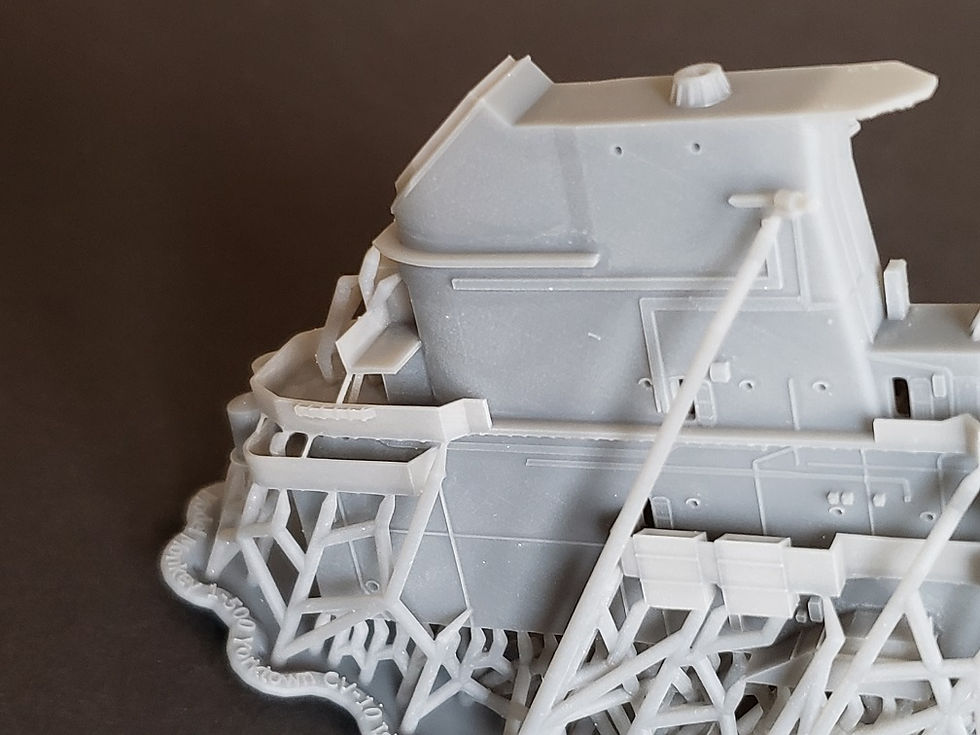

1/500 USS Yorktown CV-10 Island, 1956-1960

SKU: 500-CV10-1956-1960
