Scale: 1/570


Set includes 3 turrets with barrels.

Recommended for:

  • Revell 1/570 USS North Carolina BB-55
  • Revell 1/570 USS Washington BB-56


This set of three-gun turrets (more properly called "gunhouses") represents the enormous main battery of battleships USS North Carolina BB-55 and USS Washington BB-56.

The turrets are costly due to the extraordinary amount of acrylic plastic extruded by the printer and the time required to print them.  Unfortunately, they cannot be printed in other, less-costly materials while preserving their exceptional detail.

These 3D-printed acrylic parts are designed to accurately represent features of the real turret based on original builder's blueprints and measurements made of an actual turret on USS North Carolina.  They are not 3D-printed copies of any plastic or resin kit's parts and therefore may be shaped and sized differently than those parts.  Some adjustment to your plastic kit's parts or other aftermarket parts such as photoetch or wood decks may be necessary for best fit.

Features:

  • scaled from scans of original builder's blueprints.  Dimensions and details confirmed by measurements taken from actual gunhouses on USS North Carolina BB-55 preserved as a museum ship at Wilmington, North Carolina
  • closed armored rangefinder viewport shutters
  • rooftop screwheads acurately sized, numbered and located
  • armored rangefinder hexhead bolt and screw details
  • bases for rooftop periscopes properly located (periscopes not included, too fine to print)
  • left periscope base for Turret #2 is accurately offset slightly to the right, just like the left periscope of the real Turret #2
  • turrets are marked inside (1, 2 or 3) to identify which turret is which
  • accurately sized and shaped ventilation trunks
  • detailed turret-bottom crew access hatch, accurately offset slightly to the left
  • barrels grouped on a trunnion to allow the modeler to set the position of the barrels to any realistic elevation from +45 degrees to -1 degree (-2 degrees for Turret #3), just like the real turrets
  • breech end of the barrels is marked with an arrow pointing up to aid in assembly



© Model Monkey Book and Hobby.  This 3D-printed item may not be copied or recast.

Model Monkey 1/570 scale products for USS North Carolina BB-55 and USS Washington BB-56:

  • 1/570 16"/45 cal. Turrets for North Carolina class (set of 3 with barrels)
  • 1/570 5"/38 cal. Mk.28 Twin Mounts for North Carolina class (set of 10)
  • 1/570 Mk.38 Directors, orignal 6-sided shield, for North Carolina class (set of 2)
  • 1/570 Mk.37 Directors, "angle-back", for North Carolina class (set of 4)

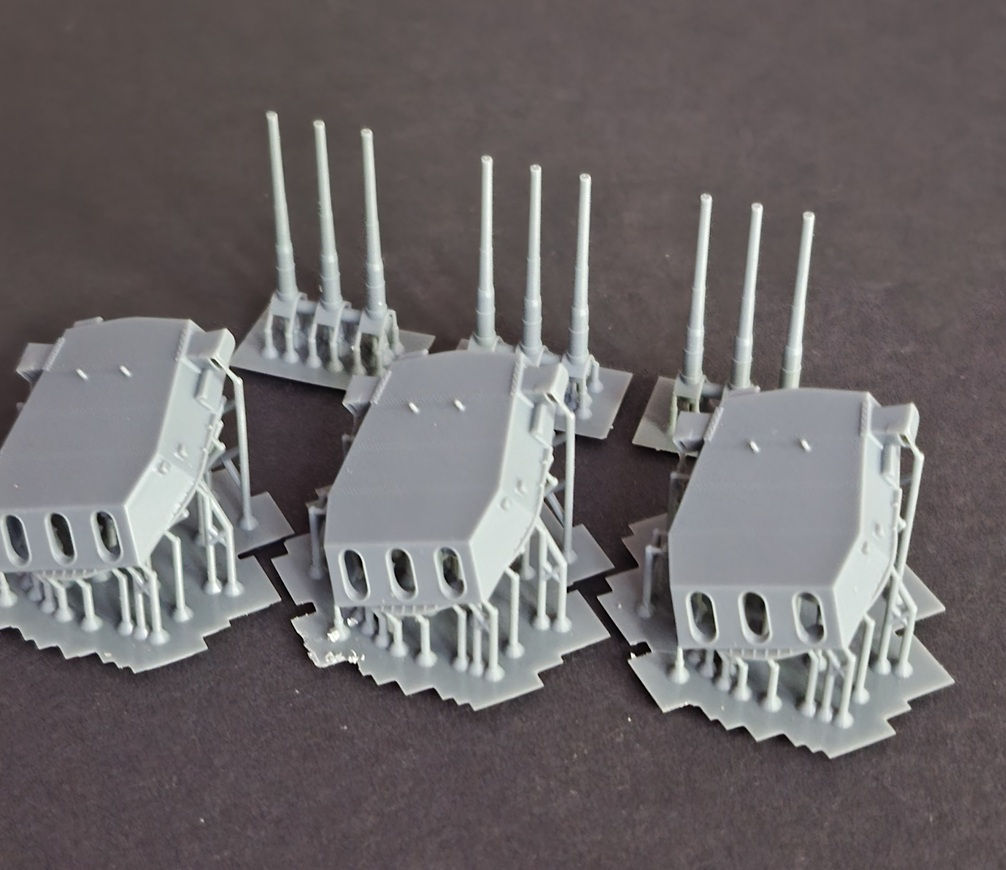

1/570 USS North Carolina BB-55 and USS Washington BB-56 16"/45 cal. Turrets

SKU: 570-BB55turrets
$19.00Price


    Except for custom nameplate text, we do not accept requests for new models or alterations to existing models.
