Scale: 1/96     (1/8 inch = 1 foot)


Set includes 1 turret with trunnion.  No barrels.



A triple-gun 8"/55 cal. turret with detailing specific to USS Portland CA-33, and a turret with detailing specific to USS Indianapolis CA-35, is available separately.


Features:

  • overall dimensions precisely scaled from US Navy O.P.1112 (2nd Rev.) "Gun Mount and Turret Catalog" drawings dated 15 January 1945
  • rain deflector and bolt-head detail as they appeared on USS Augusta CA-31

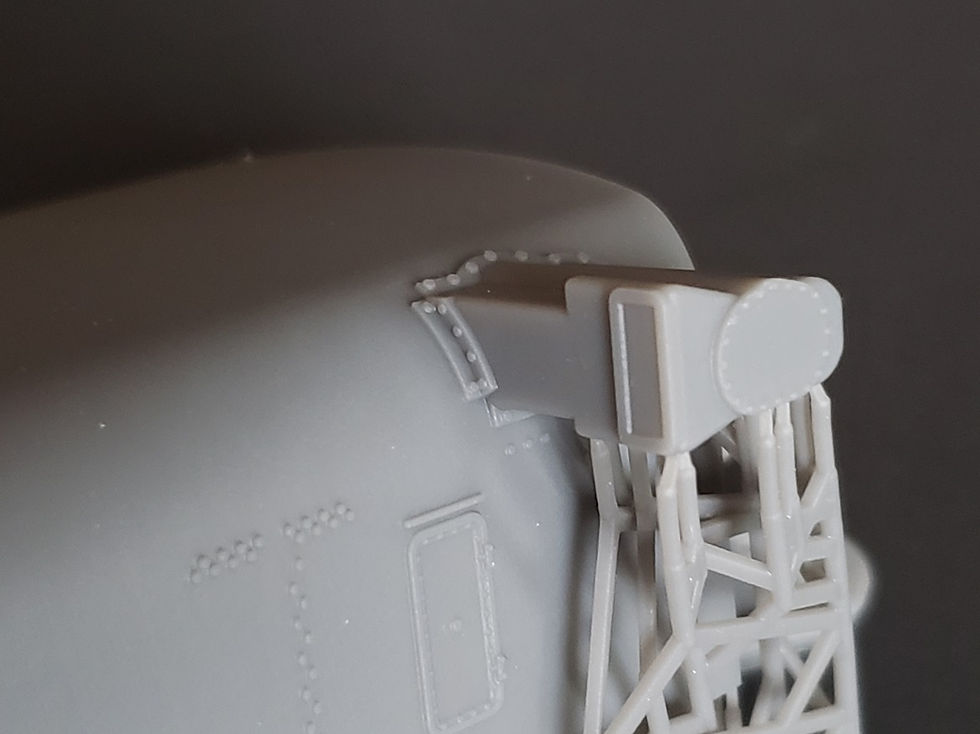

  • accurately shaped armored rangefinder hoods

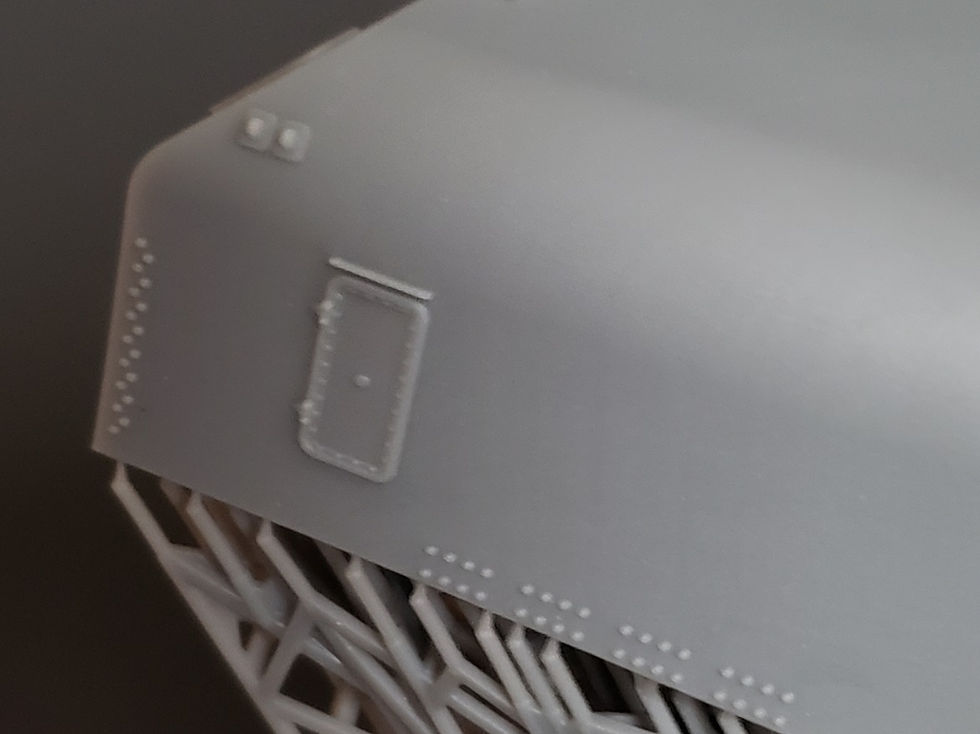

  • detailed crew access doors with hinge detail
  • hex-head exterior bolts properly positioned, sized and correctly placed according to photos of the actual turrets
  • separate trunnion, slotted for your favorite brass barrels (not included) to allow you to position the guns to any realistic elevation from -5 degrees to +40 degress just like the real turret



The US Navy installed three of this type of 8"/55 caliber triple-gun turret on the following heavy cruisers of World War II fame:

  • USS Northampton CA-26
  • USS Chester CA-27
  • USS Lousiville CA-28
  • USS Chicago CA-29
  • USS Houston CA-30
  • USS Augusta CA-31
  • USS Portland CA-33
  • USS Indianapolis CA-35



This turret is not suitable for USS New Orleans CA-32 or USS Astoria CA-34 or the other members of the New Orleans class. They had a differently shaped triple-gun turret gunhouse.

Barrels are not included.


© Model Monkey Book and Hobby.  This 3D-printed item may not be copied or recast.


From Wikipedia: "The 8"/55 caliber gun (spoken "eight-inch-fifty-five-caliber") formed the main battery of United States Navy heavy cruisers and two early aircraft carriers. United States naval gun terminology indicates the gun barrel had an internal diameter of 8 inches (203 mm), and the barrel was 55 calibers long (barrel length is 8 inch × 55 = 440 inches or 11 meters).

"Mark 9: These built-up guns weighed about 30 tons including a liner, tube, jacket, and five hoops. A down-swing Welin breech block was closed by compressed air from the gas ejector system. Loading with two silk bags each containing 45-pounds (20 kg) of smokeless powder gave a 260-pound (120 kg) projectile a velocity of 2800 feet per second (850 m/s).[1] Range was 31,860 yd (29,130 m) at the maximum elevation of 41 degrees.

"Mark 14: These guns were similar to Mark 9, with the same shell weight and maximum range, with a smaller chamber and rifling twist increased from 1 in 35 to 1 in 25 in a chromium-plated bore."

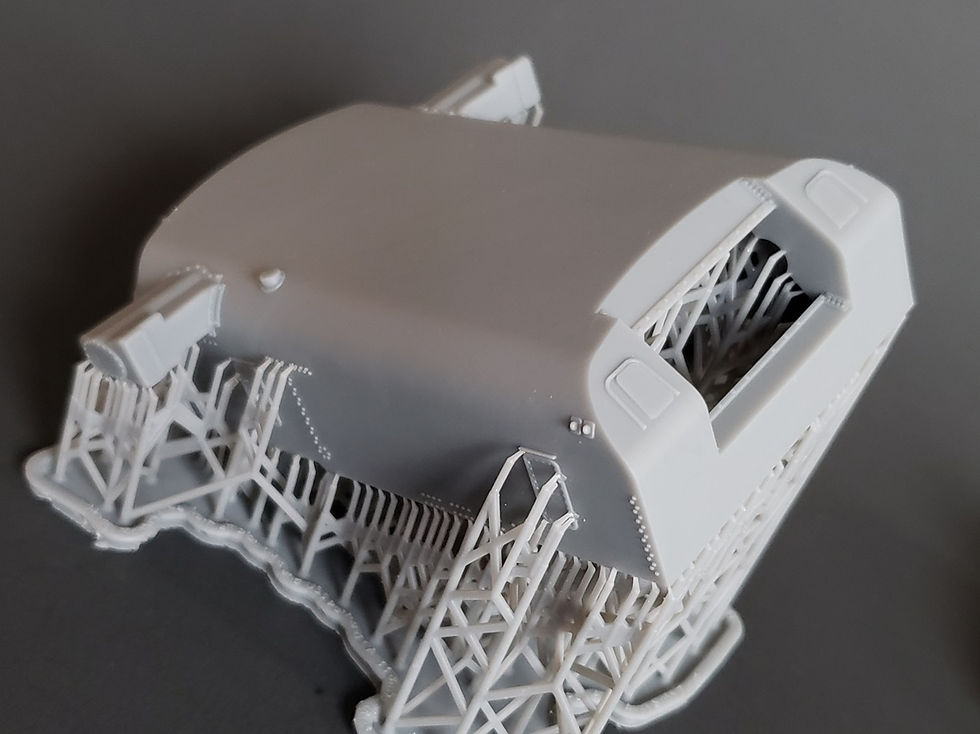

1/96 Northampton class 8"/55 cal. Turret with Trunnion

SKU: 96-CA26-turret-trunnion-1
$85.00Price
