Scale: 1/192    (1/16 inch = 1 foot)

Set includes 2 mounts (turrets) with barrels.

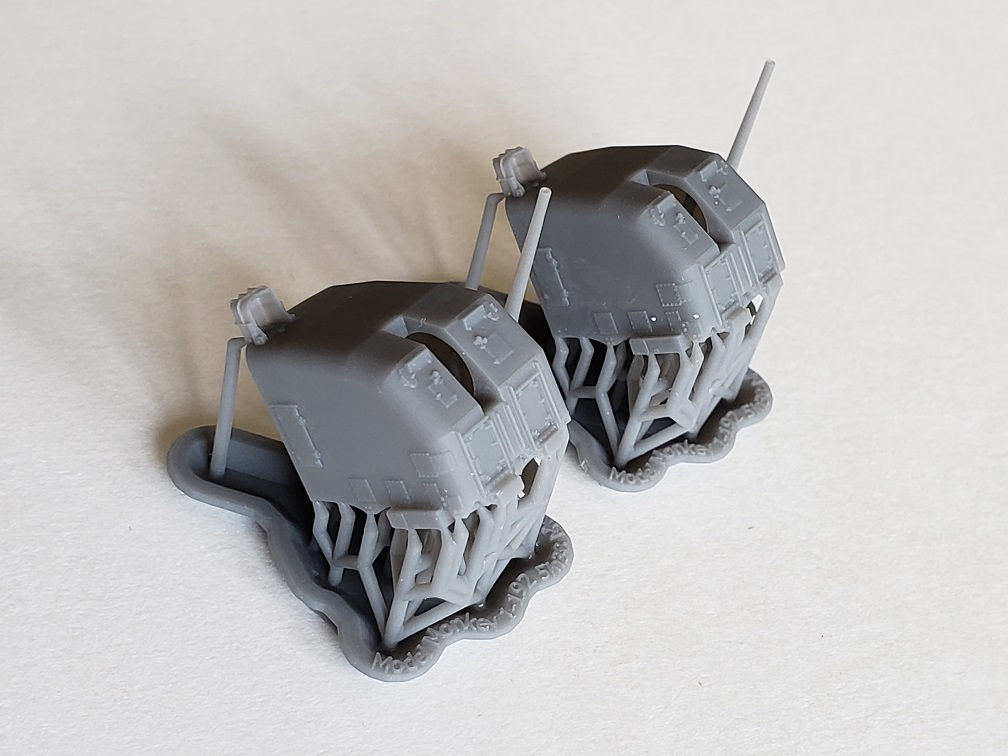

Notice: the design has been updated to include solid trunnions for easier barrel alignment based on customer feedback.  Photos of these mounts show the discontinued design with open, hollow trunnions.  Click here to see photos of 5"/38 cal. Mk.28 mounts featuring barrels with the new, solid trunnion.

Recommended for:
Bluejacket Shipcrafters 1/16 inch (1/192) scale Fletcher Class Destroyer
Blue Ridge Models 1/192 scale USS Sims DD-409 (Sims class)
Classic Warships 1/192 scale USS Sims DD-409 (Sims class)
Scale Shipyard 1/192 scale USS Fletcher DD-445
Scale Shipyard 1/192 scale USS Kidd DD-661
Yankee Modelworks 1/192 scale USS Sims DD-409 (Sims class)

Among naval historians, the US Navy 5"/38 caliber cannon is considered the best intermediate-caliber, dual purpose naval gun of World War II.  These models represent the 5"/38 cal. Mk.30 Mod.41 single gun mount fit to several classes of warships and Coast Guard cutters.

This "Heavyweight" version had a reinforced roof with two "bumps", called "knuckles", that resisted blast from another 5-inch turret firing overhead.  This type was known as a "Double Knuckle" mount during World War II.  Compared to the "early version", the late version, reproduced here, appeared sometime after 1942, had a different arrangement of stiffeners on the front of the gunhouse and additional fasteners on access hatches.  Two of these mounts are often seen on "square bridge" Fletchers such as USS Kidd DD-661, now preserved as a museum ship.

Of the five 5-inch/38 Mk.30 single mounts normally fitted to a Fletcher class destroyer, two "Double Knuckle" heavyweight mounts were carried, one in the foremost position and one in the aft most position on the main deck, known there as "Mount 51" and "Mount 55".  The other three mounts were "Single Knuckle" lightweight Mod.60 mounts, available separately.

Features:
overall dimensions and details scaled from official US Navy O.P. 1112 drawings dated March, 1945 and measurements taken from a surviving Mod.41 mount aboard the museum ship USS Kidd DD-661
mount can be made rotatable and the gun can be positioned at any realistic elevation
an accurately shaped asymmetrical gunhouse (turret)
accurate, offset gun opening
forward face stiffeners
detailed turret bottom supporting structure with accurately placed bolt-head detail
rear vent
detailed gun captain blast hood, fit to the right side of the roof as they were during World War Two
​
© Model Monkey LLC. This 3D-printed product may not be copied or recast.

Model Monkey 5"/38 cal. Single Mounts for Fletcher class destroyers:
5"/38 cal. "Double Knuckle" early heavyweight (set of 2) - for "round bridge" Fletcher class
5"/38 cal. "Single Knuckle" early lightweight (set of 3) - for "round bridge" Fletcher class
5"/38 cal. "Double Knuckle" late heavyweight (set of 2) - for "square-bridge" Fletcher class
​5"/38 cal. "Single Knuckle" late lightweight (set of 3) - for "square bridge" Fletcher class
Ring Stands for 5"/38 cal. Single Mounts (set of 5)
