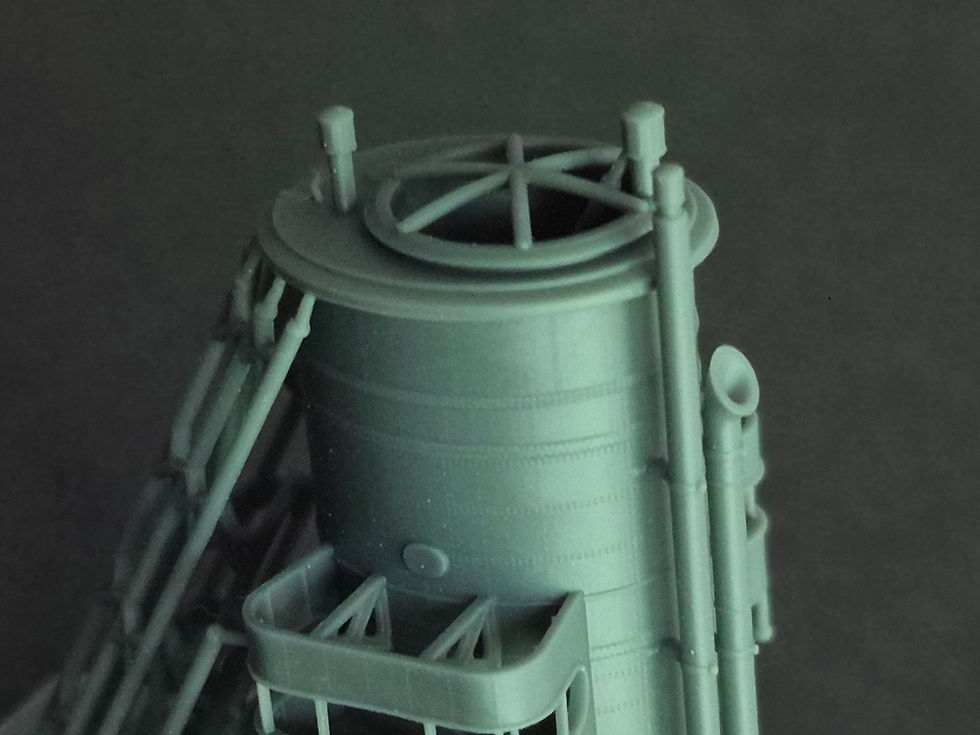

Note: photos in the carousel show the funnel in 1/350 scale. The model in 1/200 scale has identical features but is larger.  If you order this product, you will receive the 1/200 scale model.

Scale: 1/200

Recommended for:
Fujimi 1/200 scale USS Arizona BB-39
Trumpeter 1/200 USS Arizona  BB-39
and more!

This model kit represents the funnel of USS Arizona BB-39 as the ship appeared at Pearl Harbor on December 7th, 1941.  This is a multi-part kit.  These parts were designed for a tight fit.  3D-printed plastic is more brittle than polystyrene kit parts.  If necessary, trim parts to fit rather than force them.

This model was designed from scans of official US Navy drawings of the actual ship.  It is not a 3D-printed copy of any plastic or card model kit's parts.  Therefore, this model may be differently sized and shaped than the parts of your plastic or card model kit.  Some adjustment to your plastic or card model kit's parts, or other aftermarket parts such as wooden deck or photo-etch, may be necessary for best fit.

Features:
overall dimensions and features scaled from official US Navy construction drawings of the real funnel for maximum accuracy.
accurate elliptical shape.
accurately shaped steam pipes and incinerator exhausts.
accurately shaped machinegun platforms and splinter shields.
separate machinegun platform permits easier access to, and interior painting of, the searchlight control platforms straddling the funnel.
interior and exterior searchlight control station supports.
searchlight control station and machinegun platform open access hatches.
open smoke pipe with correct interior "bend", hollow all the way through.
accurate exterior rivet and reinforcing strap detail.
steam whistles.
incinerator exhaust pipe with accurate cap.
galley exhaust pipes with accurate caps.
funnel cap grille.
funnel cap cutout for vertical ladder (ladder not included).
